Powermatic 6 Jointer 54A with Straight Knives, 1 HP, 1-Phase, 115/230V – PM9-1791279DXK

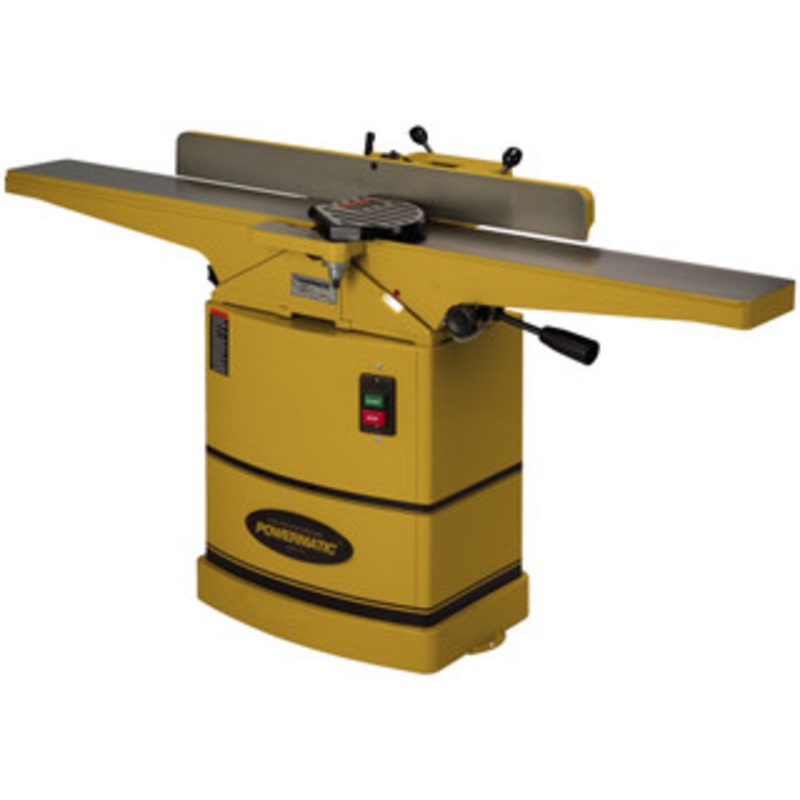

Powermatic 6″ Jointer 54A with Straight Knives, 1 HP, 1-Phase, 115/230V – PM9-1791279DXK

The 6″ Jointer is equipped with three auto-set knives that automatically align within the cutterhead, allowing for rapid and hassle-free knife changes. The oversized infeed and outfeed tables, mounted on durable dovetailed ways, feature a built-in rabbeting ledge for added versatility. The 38″ fence offers positive stops at 90 and 45 (both right and left) for precise edge-jointing.

A fine/quick adjustment lever on the infeed table ensures fast setups with precision depth control. Powered by a robust motor and a non-slip V-belt drive, this jointer delivers maximum performance. Additionally, the 4″ dust port easily connects to any dust collection system for efficient debris management.

Features:

• 66″ long adjustable infeed and outfeed tables provide more working surface
• Built-in ledge for 1/2″ rabbeting capacity
• Enlarged sheet metal stand provides a sturdy base
• Extra-long 38″ two-way tilting fence with positive stops provides quick positioning for 90 or bevel cuts
• Fence controls are center mounted for convenience
• Fine/quick adjustment lever on infeed table for precision cuts
• Push button switch is lockable to prevent accidental starting
• Cutterhead features three high speed steel auto-set knives that automatically align themselves in the cutterhead
• NOTE: The recommended max cutting depth for non-rabbeting cuts is 1/8. The max cutting depth for rabbeting cuts is 1/2″ as the manual has always stated.

View the 54A Whitepaper

Specifications:

Stock Number PM9-1791279DXK Model Number 54A Warranty 5 Year Type of Cutterhead Straight Knife Cutterhead Diameter (In.) 2-1/2 Maximum Cutting Depth (In.) 1/8″ Cuts Per Minute 18,000 Cutterhead Speed (RPM) 6000.0000 Cutting Capacity (W x D) (In.) 6 x 1/2 Dust Collection Minimum CFM Required (CFM) 600 Dust Port Outside Diameter (In.) 4 Fence Tilt (Deg.) 45 Infeed Table Length (In.) 32-1/2 Number of Knives 3 Motor Power (HP) 1 Motor Voltage (V.) 115/230 Prewired Voltage (V.) 115 Motor Phase 1 Motor Amps 13/6.5 Max.Rabbeting Capacity (In.) 1/2 Gross Weight 332.0 Net weight 328.0 Prop 65 Cancer and Reproductive Harm

See the Powermatic Mobile Base for 54A, 54HH Jointers – PM9-2042374
