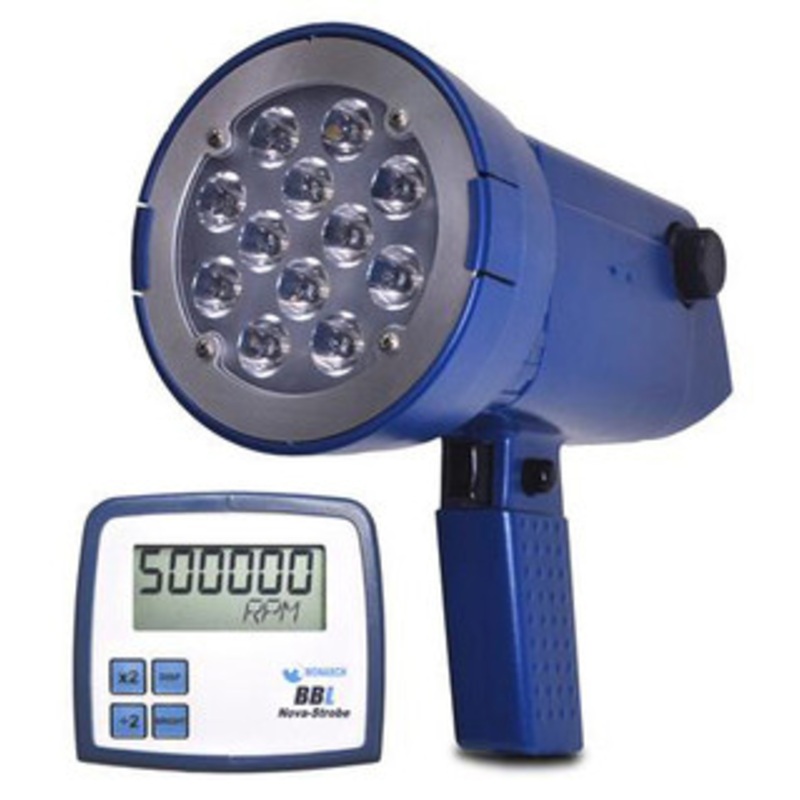

Monarch Instrument Nova-Strobe BBL LED Portable Stroboscope with NIST Certificate – 6230-010-CAL

Monarch Instrument Nova-Strobe BBL LED Portable Stroboscope with NIST Certificate – 6230-010-CAL

Basic Battery LED Stroboscope with NIST Certificate of Calibration

Basic models include: Stroboscope with universal 115/230 recharger with interchangeable wall plugs and operation manual.

The Monarch Nova-Strobe LED family of rugged industrial stroboscopes provide an extremely bright, uniform light output for performing stop motion diagnostic inspection and RPM measurements. The twelve LED light source is extremely efficient which means long battery life and continuous cool operation. A wide operating range of 30-500,000 flashes per minute covers all applications.

The Basic BBL is designed for simple stop motion inspection and RPM measurement applications.

Features:

• Flash rates from 30 to 500,000 flashes per minute
• Diagnostic inspection and RPM checks
• Digital LCD backlit display
• Tripod mounting bushing (1/4-20) in handle
• CE marked and RoHS compliant
• Flash rate may be displayed in Flashes per Minute (FPM) or Flashes per Second (Hz)
• Adjustable brightness control
• Lightweight Industrial design

Benefits of LED:

• Energy efficient with long battery life (8-10 hours typical)
• Extremely bright, uniform light output
• Completely silent
• Cool operation
• No lamp replacements
• Extremely high flash rates (up to 500,000 FPM)

Specifications/Models Comparison:

Model BBL Basic DBL Deluxe PBL Phaser Flash Range (FPM/RPM) 30-500,000 30-500,000 30-500,000 Display 6 Digit Numeric and 5 Digit Alphanumeric LCD 6 Digit Numeric and 5 Digit Alphanumeric LCD 6 Digit Numeric and 5 Digit Alphanumeric LCD Accuracy/Resolution 0.01% 0.004% of setting or +/- 1 lsd/0.01 FPM 0.004% of setting or +/- 1 lsd/0.01 FPM Light Output 4200 Lux @ 6000 FPM, 12 inches (30.48cm), 2 deg. duty cycle, Max light output: 27,000 Lux 4200 Lux @ 6000 FPM, 12 inches (30.48cm), 2 deg. duty cycle, Max light output: 27,000 Lux 4200 Lux @ 6000 FPM, 12 inches (30.48cm), 2 deg. duty cycle, Max light output: 27,000 Lux Flash Duration Adjustable to 14 degrees/3000secs max Adjustable to 14 degrees/3000secs max Adjustable to 14 degrees/3000secs max Light Source 12 LED Array 12 LED Array 12 LED Array Color Temperature Approx. 6200K Approx. 6200K Approx. 6200K External Trigger in/out – TTL (24Vdc Max) input. Provides 3.3 Vidc TTL output TTL (24Vdc Max) input. Provides 3.3 Vidc TTL output Tachometer Mode N/A 5-500,000 RPM (Use with optional remote sensor) 5-500,000 RPM (Use with optional remote sensor) Programmable Memory Yes Yes Yes Internal Phase Shift N/A Yes Yes Phase Delay – Degrees – 0.1 to 359.9 degrees 0.1 to 359.9 degrees Time Delay – milliseconds N/A 0.01 to 1000 msec. 0.01 to 1000 msec. Virtual RPM (Slow Motion) N/A 0-200 VRPM 0-200 VRPM Operating Time 8-10 hours typical @ 1800 FPM 8-10 hours typical @ 1800 FPM 8-10 hours typical @ 1800 FPM with batteries or continuous using power supply Power Supply Internal NiMH rechargeable batteries with 115/230 50/60Hz recharger Internal NiMH rechargeable batteries with 115/230 50/60Hz recharger Internal NiMH rechargeable batteries with 115/230 50/60Hz recharger or continuous uisng 115/230 50/60HZ Vac power supply/recharger Weight 1.9 lbs. (860g) 1.9 lbs. (860g) 1.9 lbs. (860g) Size (LxWxH) Body:9″ x 3.66″ x 3.56″ (229 x 93 x 90 mm);
Reflector Housing: 4.8″ (122mm) dia.;
Handle: 4.254″ (108 mm long) Body:9″ x 3.66″ x 3.56″ (229 x 93 x 90 mm);
Reflector Housing: 4.8″ (122mm) dia.;
Handle: 4.254″ (108 mm long) Body:9″ x 3.66″ x 3.56″ (229 x 93 x 90 mm);
Reflector Housing: 4.8″ (122mm) dia.;
Handle: 4.254″ (108 mm long)

Click to view the Instruction Manual
